SVP-01
Formulation Systems

Our systems flexibly support the production of small and large volume parenterals (SVP/LVP) and infusions (IV). The new, cost-efficient SVP Essential is a fully automated, ready-to-use system to produce simple parenterals such as analgesics, insulin, and generic drugs.

Learn more
MWFI-1
Membrane-based pure media generation

We offer a modular turnkey solution for the “cold” membrane-based generation of pharmaceutical-grade PW, HPW, and WFI. Employing a full range of technologies including multi-layer filtration and ultrafiltration, reverse osmosis and electrodeionization, our systems are configured to precisely address your individual requirements.

Learn more
pure-media-destille-01
Distillation-based pure media generation

Whether a single, dual, or triple mode solution, our robust turnkey solutions for the distillation-based (i.e. thermal) generation of pharmaceutical-grade pure steam (PS) and water for injection (WFI) are based on natural circulation distillation.

Learn more
LUV-1
Pure Media Storage and Distribution

A precise analysis of your requirements ensures that the right amount of water is available at all points of consumption without any loss of quality. Particular attention is paid to monitoring and hygiene during cold or hot storage.

Learn more
The right match
for your needs

These solutions meet your pure media & formulation requirements

Formulation systems? Look no further! The Syntegon subsidiary Pharmatec has everything required for a seamlessly integrated system infrastructure – from hot and cold generators to storage and distribution systems; from small to large volume parenteral drug product formulation systems, including buffer and media preparations, CIP/SIP systems, and the filling line interface.

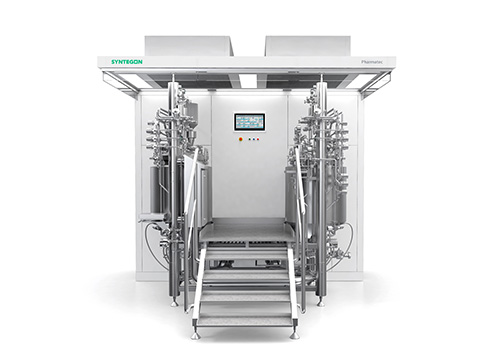

SVP-01

Formulation Systems


In drug product formulation, where the equipment functionality required is highly dependent on the drug product type, modularization is proving a decisive design advantage to help meet the need for both process flexibility and exceedingly short delivery times. Syntegon’s SVP and LVP modular solutions for batch sizes ranging from 13-20,000 liters are suitable for the GMP manufacture of small volume parenterals (SVP), large volume parenterals (LVP), infusion products (IV), as well as buffer and media preparations. We offer a full range of process vessels and their automation as well as all associated peripherals including media supply, CIP/SIP systems, and the filling line interface

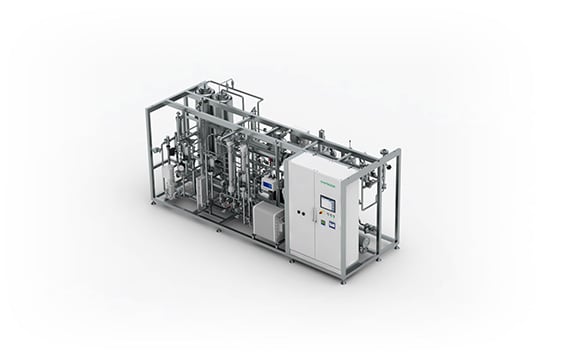

MWFI-1

Membrane-based pure media generation


Syntegon offers a modular, turnkey solution for the “cold” membrane-based generation of pharmaceutical-grade pure water (PW), high purity water (HPW), and water for injection (WFI). Employing a full range of technologies including multi-layer filtration and ultrafiltration, as well as physical-chemical processes including reverse osmosis and electrodeionization, our systems are configured to precisely address our customers’ individual requirements. Storage can be either hot or cold. Our approach substantially reduces the associated footprint, energy consumption, investment costs, qualification expenses, and ongoing maintenance costs when compared to traditional distillation-based systems.

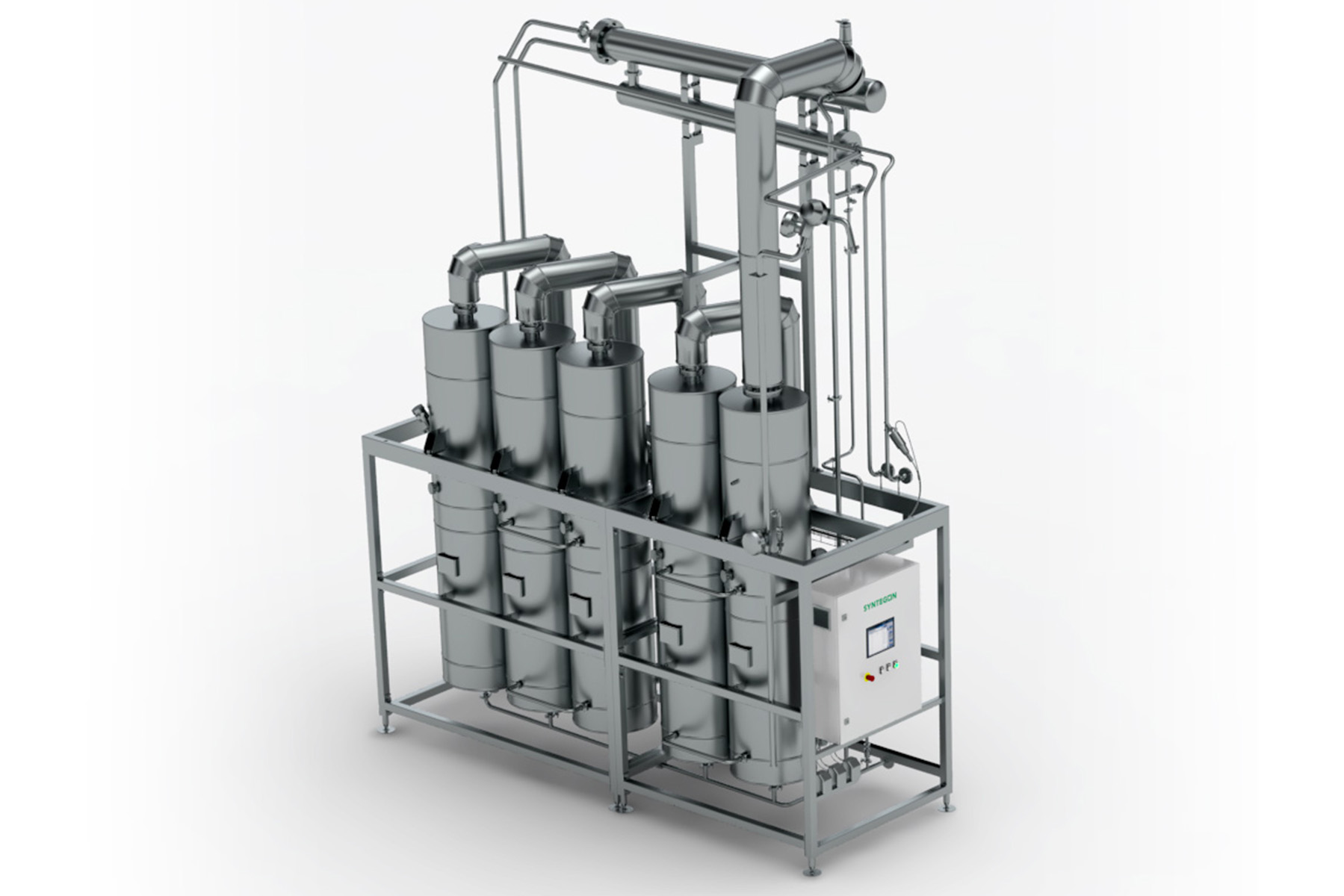

pure-media-destille-01

Distillation-based pure media generation


Syntegon offers a flexible, turnkey solution for the distillation-based (i.e. thermal) generation of pharmaceutical-grade pure steam (PS) and water for injection (WFI). Whether a single, dual, or triple mode solution, our robust technology is based on natural circulation distillation. The supply of heating steam to the first column is all you need for operation; all other modules are heated in an energy-efficient manner utilizing the heat generated during the preceding process stage. The sterile steam is condensed to high-purity water of WFI quality at every subsequent process stage. Our proven approach meaningfully reduces the associated footprint and energy consumption.

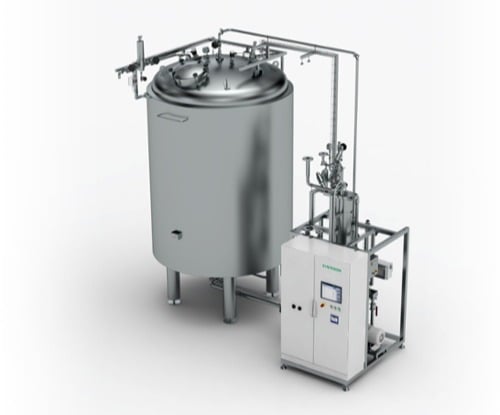

LUV-1

Pure media storage and distribution


A precise analysis of your requirements ensures that the right amount of water is available at all points of consumption without any loss of quality. Particular attention is paid to monitoring and hygiene during cold or hot storage. Pure water tanks with modular distribution skids are available for cold storage and distribution of PW or WFI. Ozone can be added to protect against microbial contamination.
