Capsule Filling
Capsule Filling GKF Capsylon Series

Capsule filling machine – GKF Capsylon series

all-capsule-powder-pellets-gingko
Capsule filling machines ideal for nutrition and health products

The GKF Capsylon machine series is specially designed for the nutrition and health industry and provides the renowned Syntegon quality at an excellent price-performance ratio. The machines can fill powders, pellets, and granules into capsules. They meet the growing need for high efficiency, easy operation as well as simple cleaning. The GKF Capsylon Series is the ideal solution to increase your production capacity, while reducing unit dosage cost.

background-image

Key benefits

Modular and flexible machine design
The GKF Capsylon series combines minimized changeover and cleaning times with maximized productivity
Highly efficient production processes
Easy maintenance and operation ensure effective processes at all times
Highly accurate and flexible dosing
Our machines reduce product loss and faulty capsule ejection, while increasing yields significantly

Capsule filling machines – our GKF Capsylon portfolio

Ideal for the capsule filling of health & nutrition products

GKF-705-machine
GKF 705
Our low-speed capsule filling machine doses sticky or fine-grained powders precisely at outputs of between 3,000 and 42,000 capsules per hour, making it especially suitable for nutraceutical products.
GKF-3005
GKF 1505
This medium-speed capsule filling machine doses sticky or fine-grained powders precisely at outputs of up to 92,000 capsules per hour for commonly available capsule sizes.
GKF-3005
GKF 3005
Our high-speed capsule filling machine is especially suited for nutraceutical, sticky or fine-grained powders. It achieves an output of up to 175,000 capsules per hour.
pill-filling-machine
GKF 6005

This high-speed capsule filling machine and latest addition to the GKF Capsylon series is your ideal partner to increase production capacity, improve product efficiency and reduce unit dosage cost at an output of up to 360,000 capsules per hour.

All GKF platforms are optionally available with  our patented slide-gate technology. It reduces product loss and increases yield significantly. Besides minimizing the dust impact of the product in the machine, the slide-gate system also offers the possibility to run pellets or granules on the same dosing station.

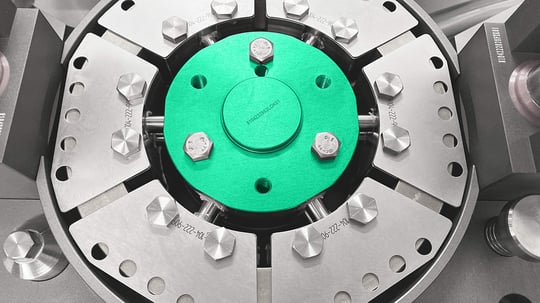

liquid-capsule-filling-machine

Technical data of our GKF Capsylon series

Technical data overview
  GKF 705 GKF 1505 GKF 3005 GKF 6005
Output  42,000 caps/h 92,000 caps/h 175,000 caps/h 360,000 caps/h
Segment bores 5 11 21 48
Machine cycles Max. 140 cycles/min Max. 140 cycles/min Max. 140 cycles/min Max. 125 cycles/min
Dimensions (HxWxD) 2031x868 x 1200 mm 2099 x 1219 x 1688 mm 2099 x 1219 x 1688 mm 2276 x 1908 x 1808 mm
Connected voltage

400 V ±10% , 50/60Hz,3PH/N/PE 6KW

400 V ±10% , 50/60Hz,3 ph/PE, 2.5kW

400 V ±10% , 50/60Hz,3 ph/N/PE,13 KVA

400 V ±10% , 50/60Hz,3 ph/PE, 40A, 23 kW

Service Agreements
Service Agreements

Find out more about our Service Agreements here.

Digital Solutions
Digital Solutions

Find out more about Digital Solutions here.

Maintenance
Maintenance

Find out more about Maintenance here.

Technical Support
Technical Support

Find out more about Technical Support here.

Modernizations
Modernizations

Find out more about Modernizations here.

Training
Training

Find out more about our Training here.

Expert Services
Expert Services

Find out more about our Expert Services here.

Why choose Syntegon as your partner?

about-us

About us


Processing and packaging for a better life – this is what our employees work for every day. Looking back on a 160 years of experience, the portfolio of intelligent, innovative and reliable solutions help our customers in the global pharmaceutical and food industries to improve people‘s life.
With 1,100 service experts and a comprehensive service portfolio throughout the entire machine lifecycle from spare parts management to digital line optimization, Syntegon lays the foundation for smooth production processes for all customers.

years of experience
patents and patent applications
machines installed world-wide
locations
liquid-capsule-band

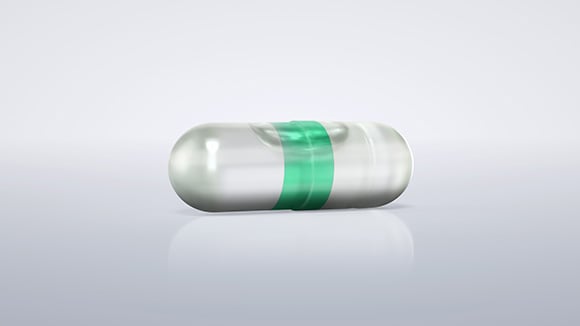

Why capsule sealing?

Capsule sealing with banding technology ensures the highest product quality and prevents liquid-filled capsules from leakage. Banding also provides an additional measure for anti-counterfeiting of capsules filled with powder or other components. Sealing provides an enhanced safety measure to meet regulatory requirements. Our Syntegon GKB 2100 banding machine can handle both hard gelatine and HPMC (plant-based) capsules.

GKB_2100_PRESS_Syn

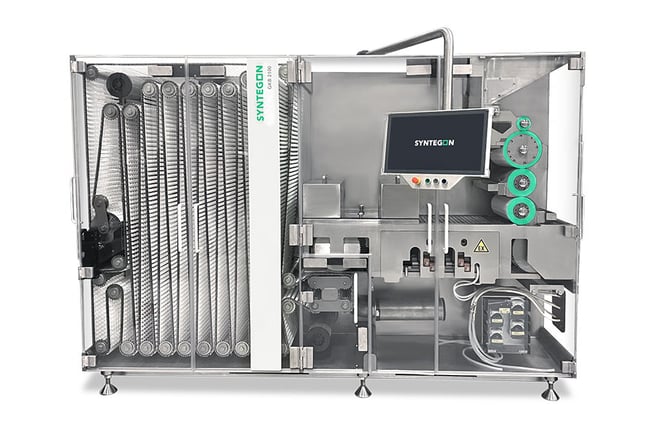

The Syntegon GKB 2100 banding machine

The new GKB 2100 features a particularly robust and flexible process, combined with the highest yield and maximum process stability. The focus is on user-friendliness, as well as very good accessibility for cleaning and easy format part changeovers. Our banding machine achieves an output of up to 125,000 capsules per hour.

Capsule filling downloads

GKF Capsylon Series
GKF Capsylon Series

The capsule filling machine is specially designed for the health and nutraceutical industry

GKF 705 Capsylon
GKF 705 Capsylon

Low-speed capsule filling machine from Syntegon

GKF 1505 Capsylon
GKF 1505 Capsylon

Medium-speed capsule filling machine from Syntegon

GKF 3005 Capsylon
GKF 3005 Capsylon

High-speed capsule filling machine for sticky and fine grained powders from Syntegon

GKF 6005 Capsylon
GKF 6005 Capsylon

The new generation high-speed capsule filling machine from Syntegon for the health and nutraceutical industry

GKB 2100
GKB 2100

The GKB 2100 hard capsule sealing machine is suitable for both hard gelatin and HPMC (plant-based) capsules
