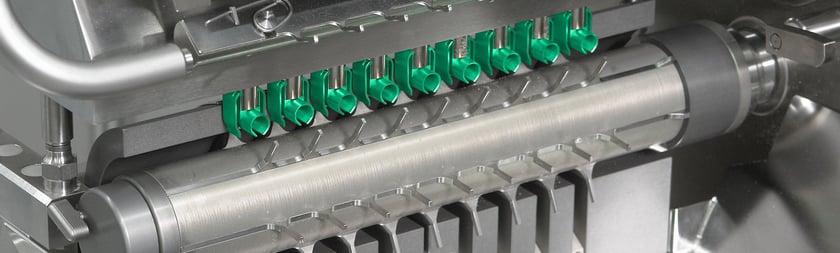

Your ideal partner for high precision capsule checkweighing

The KKE capsule checkweighing series sets standards in 100 % capsule weighing. With its mechanical pre-dedusting system, the precise gravimetric weighing technology makes the series the ideal choice for your capsule checkweighing needs. The platforms also answer the growing needs of the nutraceutical and health industry in terms of process control and increases product quality in your capsule production. KKE models are available in OEB 4 and OEB 5 versions as well as in dust-tight and wet-clean versions for increased operator protection.

background-image

Key benefits

Highly accurate weighing
Our patented “hanging weighing cell” makes the KKE best in class for weighing accuracy
High OEE
Each KKE features an ASB function for automated troubleshooting
Ideal process control
All capsules are controlled throughout the entire weighing process, ensuring a secure separation of good and bad capsules

Capsule checkweighing platforms – our KKE portfolio

check-weighing-machine

KKE 1700 capsule checkweigher

The ideal partner for high precision capsule checkweighing in the medium production range.

check-weighing-machine-01

KKE 2500 capsule checkweigher

The ideal in-line partner with the GKF 2500 capsule filling machine.

check-weighing-machine-02

KKE 2600 capsule checkweigher

The ideal in-line partner with the GKF 2600 capsule filling machine.

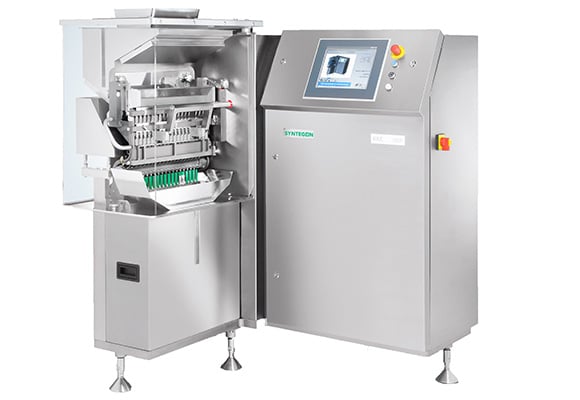

checkweighe-machine

KKE 3800 capsule checkweigher

The ideal partner for high precision capsule checkweighing for large batches.

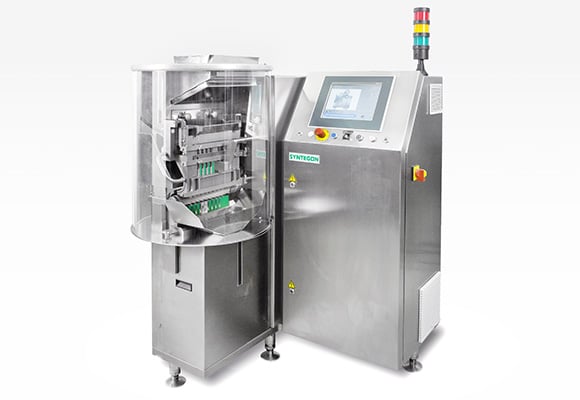

check-weighing-machine
KKE 1700
The KKE 1700 capsule checkweigher provides easy accessibility. Its permanent positive guidance of the capsules ensures pharmaceutical safety at all times. It is best suited for the medium production range with an output of up to 103,200 capsules per hour. The KKE 1700 stands for extremely high productivity with integrated cGMP and ASB technology.

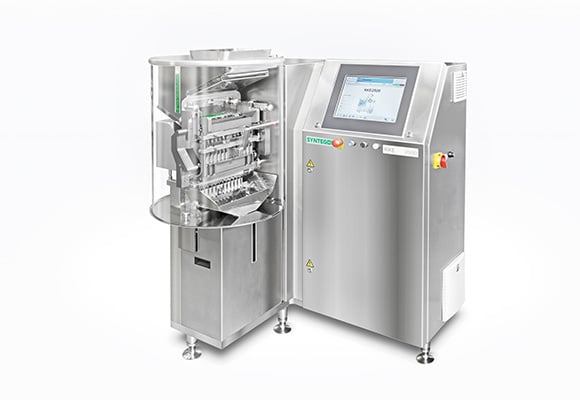

check-weighing-machine-01
KKE 2500
The KKE 2500 capsule checkweigher it is the ideal in-line partner for the GKF 2500 capsule filling machine in terms of both safety and efficiency. It sets standards in 100 % capsule weighing with outputs of up to 150,000 capsules per hour.

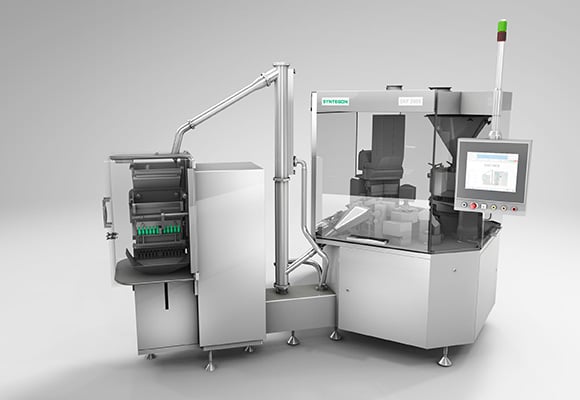

check-weighing-machine-02
KKE 2600
The KKE 2600 capsule checkweigher with an output of up to 156,000 capsules per hour is the ideal match for our GKF 2600 capsule filling platform. Thanks to the integrated ASB, false weights are reported by a feedback loop and adjusted in the production process. The seamless documentation of production data ensures highest traceability and pharmaceutical compliance.
KKE-3800
KKE 3800

The KKE 3800 capsule checkweigher stands for ultra-high speeds and an output of up to 232,200 capsules per hour. Its high productivity makes it suited for applications with more than one capsule filling machine or for batch processing, ensuring large volume production and fast time to market. Moreover, the KKE 3800 provides easy accessibility and cleaning, as well as comprehensive production documentation.

The KKE capsule checkweigher can be easily integrated with a Syntegon GKF capsule filling machine via pneumatic transfer. After filling, the capsules are weighed with 100 % accuracy. You receive a highly efficient line process with an automated feedback loop.

check-weighing-machine-02

Technical data of our KKE capsule checkweighing series

Technical data overview
  KKE 1700 KKE 2500 KKE 2600 KKE 3800
Output 103,200 caps/h 154,800 caps/h 156,600 caps/h 232,200 caps/h
Sizes 000 – 5, elongated, DB 000 – 5, elongated, DB 000 – 5, elongated, DB 000 – 5, elongated, DB
Accuracy +/- 1 mg +/- 1 mg +/- 1 mg +/- 1 mg
Checking range 0 - 2,000 mg 0 - 2,000 mg 0 - 2,000 mg 0 - 2,000 mg
