    Case Packing
    Case Packing

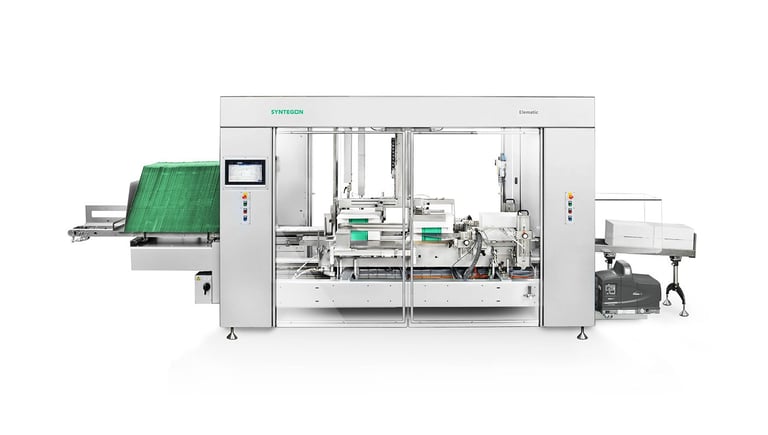

    Case packer

    Flexible, gentle, and fast – these are the key factors for case packing.

    Case packers play a key role in packaging process, especially in automation of production lines. The cases keep the products intact during the global delivery and long transport routes. Elematic case packers from Syntegon have been designed for maximum efficiency, performance, and flexibility.

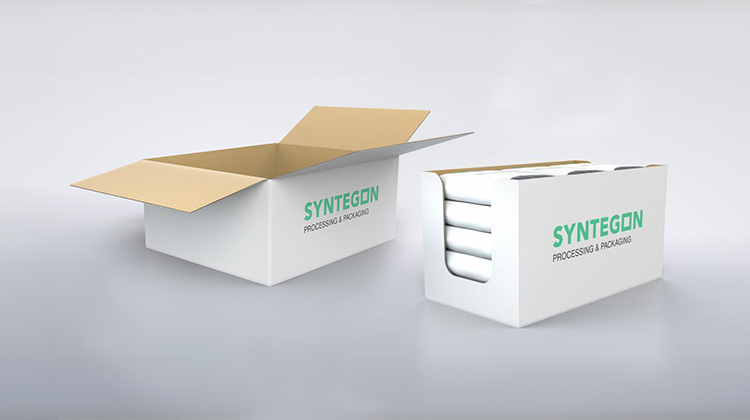

    Our case packer portfolio includes packers for RSC and wrap around technology, also shelf ready for a wide format range. Whether top load, side load or wrap around case packers – the Elematic packs all kind of products for many different industries: chocolate, confectionery, cookies and crackers, bakery, cereals, snacks, cheese, pet food, home & personal care and even toys and games. Syntegon’s case packers offer easy and quick format changeovers. You can run up to 100 different case styles on one machine – from simple tray, customized wrap arounds to complex tray and hood cases.

    Elematic case packer includes optionally automated format changeovers across multiple levels, that is beneficial for a guided, verified, and error-free changeover. Case packer machines can be integrated seamlessly into new and existing vertical or horizontal packing systems.

    Syntegon’s case packers handle recycled packaging materials in the best possible way, but can also handle new alternative packaging materials, such as grass, cup plant (silphium perfoliatum), or coconut fibre. Our case packer machines are sustainable as they use dotted glue application. This saves around 10 percent of energy and up to 40 percent of glue without sacrificing case stability.

    background-image

    Key benefits

    Large format range
    Suitable for a large range of products and case formats. Quick and reproducible format changeover.
    Many design options
    More than 100 different case designs on one case packer machine.
    Efficient automation
    Tailored automation solutions for end of line packing.
    Safe and ergonomic
    Case packing made easy with ergonomic design.

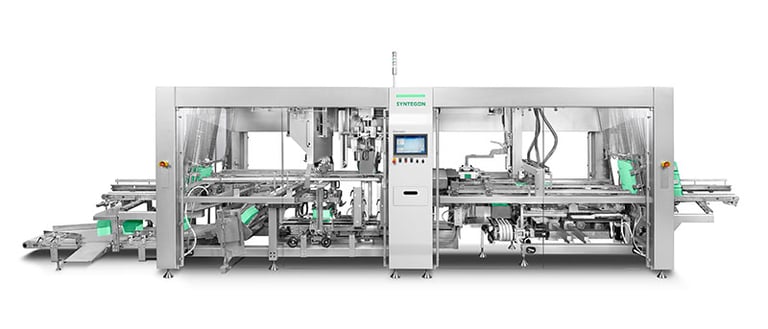

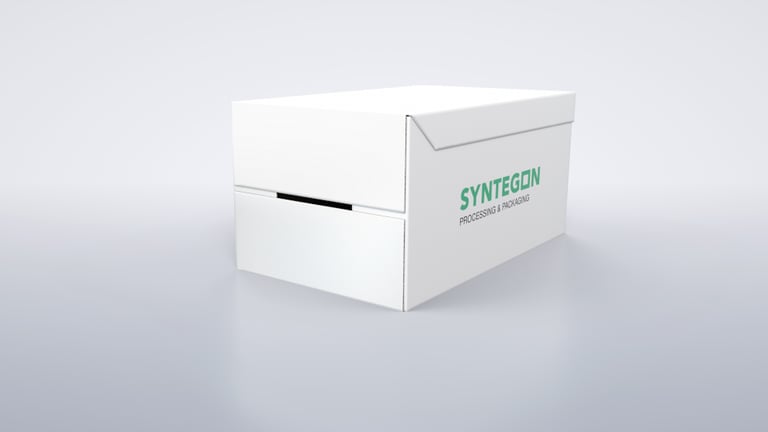

    Wraparound case packers

    Our configurable wraparound case packers are designed for a wide format range and offer maximum flexibility in terms of different pack styles. Whether it is a simple one-piece wraparound or a shelf-ready two-piece case, the automated Syntegon case packers are able to switch between various formats within six minutes.

    Wraparound case packer portfolio: Elematic 2001 WA/WAH, Elematic 3001 WA/WAH

    Technical data of our wraparound case packers

    Blank Format min. max.
    Blank length 140 mm/5.5" 900 mm/35.4"
    Blank width 160 mm/6.3” 1.200 mm/47.2”
    Packaging min. max.
    Case length 120 mm/4.7” 600 mm/23.6”
    Case width 60 mm/2.3 400 mm/23.6”
    Case height 60/30 mm/2.3”/1.2“ 300 mm/11.8”
    Material

    Corrugated board/Solid board/combined
    Performance
    Infeed up to 400 - 600 products/min.
    Output up to 25 - 40 cases/min.
    Infeed Inline standing, inline laying, with a 90° angle
    Machines:

    1. Elematic 2001 WA/WAH
    2. Elematic 3001 WA/WAH

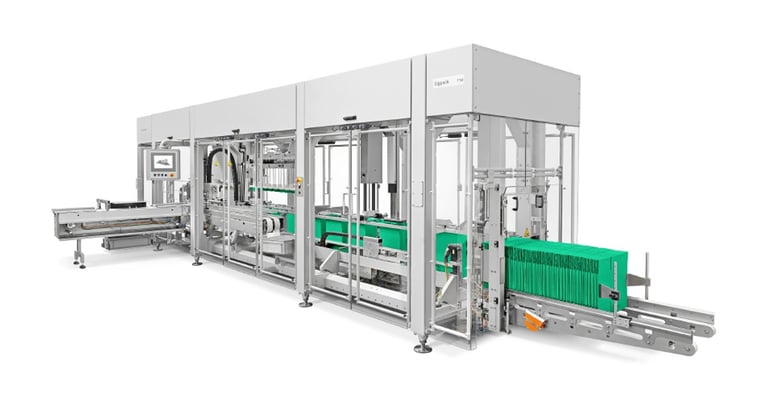

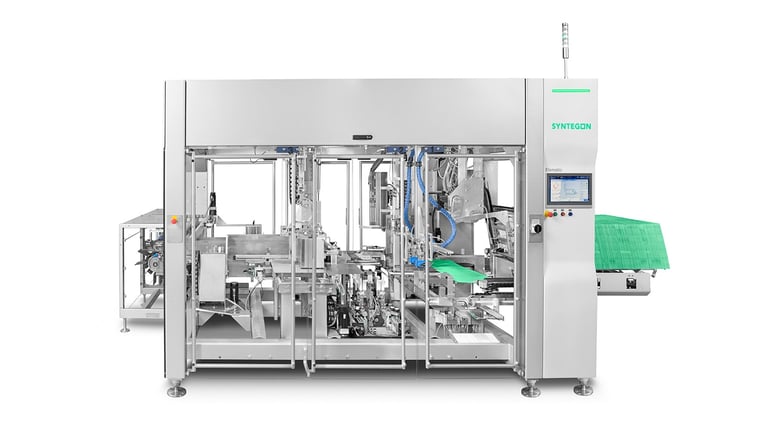

    Sideload and topload case packers

    Our sideload and topload case packing machines with fast and toolless format changeovers enable you to process a wide variety of pack styles and formats. Thanks to its large format range, it is able to process very small up to very large sized collations. Products can be grouped in single or multi-rows, as well as layer collations before they are loaded into cartons from corrugated or solid board.

    Sideload and topload case packer portfolio: Elematic 1001 SL, Elematic 1001 TL, TTMC, CCM 3100

    Technical data of our sideload and topload case packers

    Blank Format min. max.
    Blank length 300 mm/11.8" 1000 mm/39.3"
    Blank width 200 mm/7.9" 750 mm/29.5"
    Packaging min. max.
    Case length 125 mm/5" 650 mm/26”
    Case width 125 mm/5" 450 mm/18”
    Case height 125 mm/5" 450 mm/18”
    Maximum weight  25 kg/55 lb
    Material Corrugated board (B-flute, E-flute, C-flute, BC-flute), Solid board, also both combined
    Performance
    Infeed up to 180 products/min.
    Output up to 15 - 30 cases/min.
    Infeed Inline standing, inline laying, with a 90° angle
    Machines:

    1. Elematic 1001 TL
    2. TTMC TL
    3. Elematic 1001 SL
    4. CCM 3100

    Case studies

    Panda Lakumix Original
    Flexible case packer for all licorice bags
    Whether sweet or salty, licorice is highly popular throughout Scandinavia. Orkla Confectionery & Snacks Finland AB produces confectionery and snacks and has a portfolio of over 70 brands.
    Learn more
    case-packer-machine-tab-2

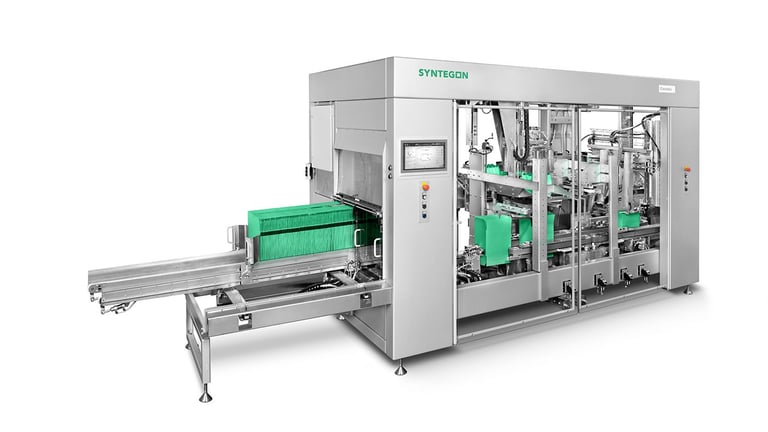

    Customer story Chewters
    The Canadian chocolate manufacturer Chewters invested in a new packaging line from Syntegon to meet growing market demand – including a TTME top load cartoner and an Elematic 3001 case packer for efficient secondary packaging.
    Watch video
    case-packing-mondelez-toblerone-1
    Customer story Mondelez International
    Syntegon packages famous chocolate Toblerone from Mondelez. Syntegon Technology, has supported the brand with its comprehensive portfolio of secondary packaging technology since the Berne-Brunnen plant in Switzerland was opened in 1985.
    Learn more
    Service Agreements
    Service Agreements

    Find out more about our Service Agreements here.

    Learn more
    Digital Solutions
    Digital Solutions

    Find out more about Digital Solutions here.

    Learn more
    Maintenance
    Maintenance

    Find out more about Maintenance here.

    Learn more
    Technical Support
    Technical Support

    Find out more about Technical Support here.

    Learn more
    Modernizations
    Modernizations

    Find out more about Modernizations here.

    Learn more
    Training
    Training

    Find out more about our Training here.

    Learn more
    Expert Services
    Expert Services

    Find out more about our Expert Services here.

    Learn more

    Why choose a Syntegon case packing machine?

    case-packer-experts

    About us

    Processing and packaging for a better life – this is what our employees work for every day. Looking back on a 160 years of experience, the portfolio of intelligent, innovative and reliable solutions help our customers in the global pharmaceutical and food industries to improve people‘s life.
    With 1,100 service experts and a comprehensive service portfolio throughout the entire machine lifecycle from spare parts management to digital line optimization, Syntegon lays the foundation for smooth production processes for all customers.

    Learn more
    years of experience
    patents and patent applications
    machines installed world-wide
    locations
    PANDA ORIGINAL

    Our expertise, your advantage

    Arto Liimatainen, Technical Manager at Orkla Confectionery & Snacks Finland AB

    “The machine delivers what its name suggests – a compact, easy-to-clean and accessible case packer. Case forming, placing the bags inside and closing the packaging required gentle handling and accurate grouping to literally ‘build’ the transport case around the bags. We were impressed with the fast and efficient solution from Syntegon.“

    case-packing-mondelez-toblerone-1

    Our expertise, your advantage

    Juerg Adam, Engineer at Mondelez International

    “The Elematic 1001 SL impressed us with it’s format flexibility and performance: following the pilot project, we ordered a second sideload case packer and two Elematic 2000 WA case packers for full wrap-around cartons.”

    Case packing downloads

    Streamlining Case Packing
    Streamlining Case Packing

    The Bold Moves of Automation

    Download
    Packstyles
    Packstyles

    Download
    Elematic 2001
    Elematic 2001

    Download
    CCM 3100
    CCM 3100

    Download
    Elematic 1001 TL
    Elematic 1001 TL

    Download
    Elematic 1001 SL
    Elematic 1001 SL

    Download
    Elematic 3001
    Elematic 3001

    Download
    TTMC
    TTMC

    Download
    Brochure Elematic
    Brochure Elematic

    Download

    Read our latest food news

    Syntegon at ProSweets: come to experience line competence in confectionery manufacturing and packaging
    28.11.2024
    Syntegon at ProSweets: come to experience line competence in confectionery manufacturing and packaging

    Discover innovative confectionery solutions at ProSweets 2025, booth D045, Hall 10.1. Experience our expertise in sustainable production and packaging.

    More
    Makat’s NutraGummyFactory gets ‘Highly Commended’ at the World Confectionery Conference 2024
    Makat’s NutraGummyFactory gets ‘Highly Commended’ at the World Confectionery Conference 2024

    Welcome to the NutraGummyFactory, a leader in nutraceutical gummy production. Our team delivers...

    More
    Join us at Pack Expo and experience seamless innovations for the food industry!
    Join us at Pack Expo and experience seamless innovations for the food industry!

    Visit booth S-2914 to experience our innovative automated systems for cookies and food. See the SVX...

    More
    Sustainable and high-quality coffee packaging – PMX 4001 with compact footprint
    Sustainable and high-quality coffee packaging – PMX 4001 with compact footprint

    Learn more about our new vertical Coffee Bagger – the compact PMX 4001.

    More
    Efficient and sustainable cardboard sleeving
    Efficient and sustainable cardboard sleeving

    Cardboard is a great choice of material. It is sustainable, provides packaging stability, and...

    More
    More Syntegon News

    FAQs on secondary packaging for home products

    Packaging takes on a double role: first, it has to make sure that products arrive at supermarkets unharmed and in good shape. Second, products should also attract consumers’ attention trough an appealing look at the POS. Transport safety, an attractive presentation and quick shelf placement are requirements that any packaging for home products should meet.

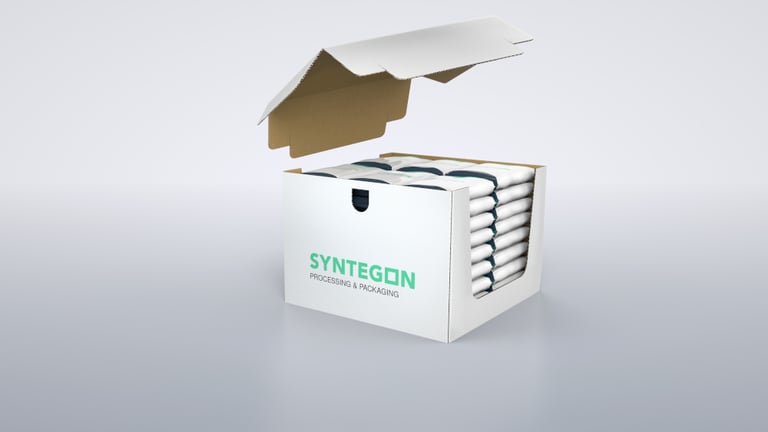

    Since these solutions serve multiple purposes, manufacturers work with custom designed blanks. For shelf-ready packaging, for example, a perforated line separates the upper part so that the individual packages are visible on the shelf and the products are presented attractively. The challenge with one-piece shelf-ready packaging, however, is the size and length of the perforation. Blanks are often thin and fragile due to the strong perforation. If not processed gently, they will tear during the folding process. This results in unnecessary product waste, which could be avoided by using appropriate technologies.

    Through form-fitting folding movements during the forming process, even at high processing speeds. It is important to have workflows that match the forming specifications of the blanks and prevent tearing or breaking. Machines must be adaptable to be calibrated to the cut and crease lines as well as the perforations of the blank. With the Elematic 2001 Wrap-Around (WA), Syntegon has developed a fully automated single-level case packer with product infeed and grouping.

    The trend towards sustainable packaging materials is gaining ground. Solutions based on grass, coconut or sugar cane fiber are slowly but surely replacing plastic materials. We are modifying our machines accordingly: the Elematic 2001 series can process solid and corrugated cardboard made from recycled paper and alternative fiber materials, even in a more bent state than usual.
